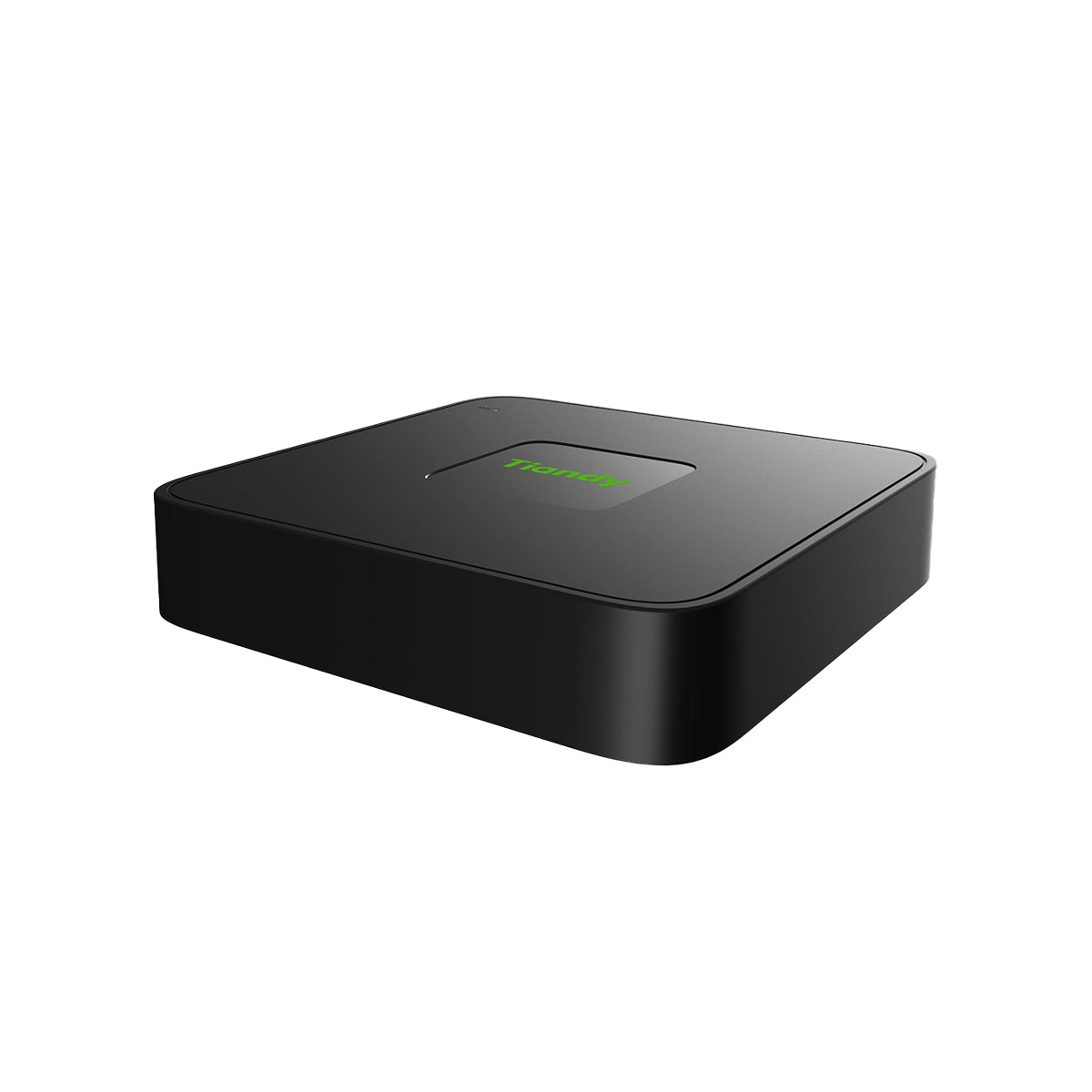

TC-R3104 4-Channel PoE NVR on a clean white background

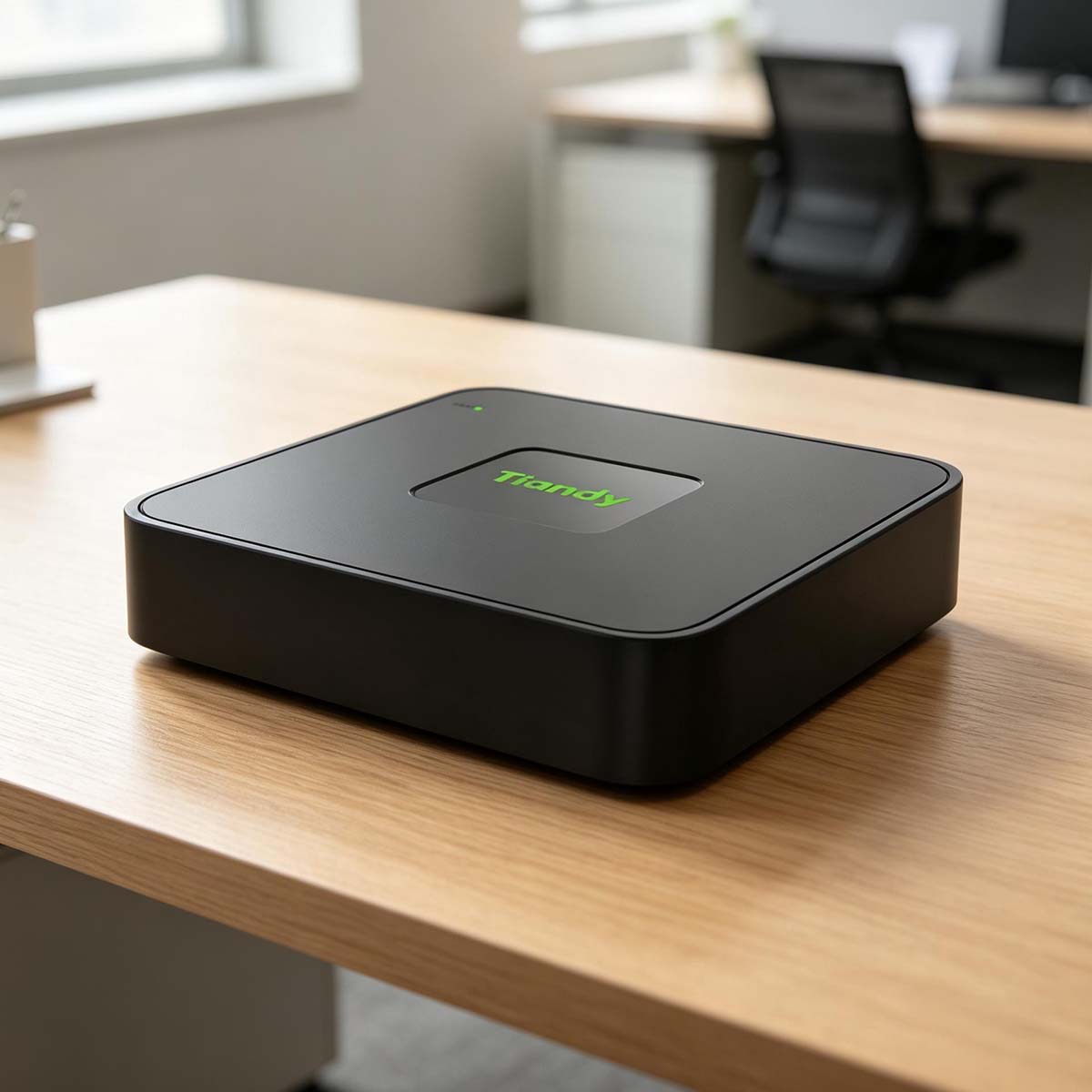

TC-R3104 4-Channel PoE NVR shown in a proposed installation setting

TC-R3104 4-Channel PoE NVR — Compact Local Recording

$199.00

Pickup available at Melbourne Warehouse

Usually ready in 24 hours

Pairs well with

In stock! Ships within 3-7 business days.

12-Month Warranty

Complimentary shipping & returns

Designed for everyday access

A clearer, more considered product experience

A compact four-channel network video recorder for small security systems. Four integrated PoE ports, local display outputs and support for one high-capacity hard drive provide a considered foundation for continuous recording.

Highlights

Features

Manage up to four IP cameras

A focused four-channel format suits smaller residential and professional security systems.

Power compatible cameras through PoE

Four integrated PoE ports can simplify camera cabling when used with compatible equipment.

Review four channels together

Synchronous four-channel playback supports coordinated footage review.

Connect common local displays

HDMI and VGA outputs can operate simultaneously at up to 1080p output resolution.

Scale local storage to the project

The recorder supports one hard drive with capacity up to 8 TB; drive is not confirmed as included.

At a glance

Specifications

Model
TC-R3104 Spec:I/B/P4/C/Au/LS/V2.0
Product category
NVR
IP camera inputs
Up to 4 channels
Incoming bandwidth
60 Mbps
Outgoing bandwidth
40 Mbps
Video compression
S+265, H.265, S+264 and H.264
Maximum decoding
1 × 6 MP at 30 fps or 4 × 1080p at 30 fps
Playback
4-channel synchronous playback
Storage
1 × HDD, up to 8 TB capacity; HDD not confirmed as included
Display outputs
Simultaneous HDMI and VGA; HDMI up to 1080p
Network
1 × RJ-45 10/100 Mbps self-adaptive Ethernet
PoE
4 × RJ-45 10/100 Mbps self-adaptive PoE ports
Upgrade
Cloud upgrade supported
Warranty
To be confirmed
Certifications
To be confirmed

Compatibility & installation

Confirm camera compatibility, PoE power budget, network configuration, hard-drive compatibility and capacity, monitor resolution, ventilation and installation location before commissioning.

Before you order

Product information

What’s included

  • Package contents to be confirmed

Helpful answers

FAQs

Find quick answers about this product, access, power and installation.

What is the TC-R3104 Spec:I/B/P4/C/Au/LS/V2.0 designed for?
A compact four-channel network video recorder for small security systems. Four integrated PoE ports, local display outputs and support for one high-capacity hard drive provide a considered foundation for continuous recording.
What recording quality does it support?
1 × 6 MP at 30 fps or 4 × 1080p at 30 fps
Does it support local storage?
1 × HDD, up to 8 TB capacity; HDD not confirmed as included
What should be confirmed before installation?
Confirm camera compatibility, PoE power budget, network configuration, hard-drive compatibility and capacity, monitor resolution, ventilation and installation location before commissioning.
What is included?
Exact package contents are to be confirmed. The draft does not assume that storage media, hard drive, power supply, network equipment or mounting accessories are included unless separately stated.
